Why TUV-Certified Solar Cables Are Essential for Export Projects

By JianYunCable -

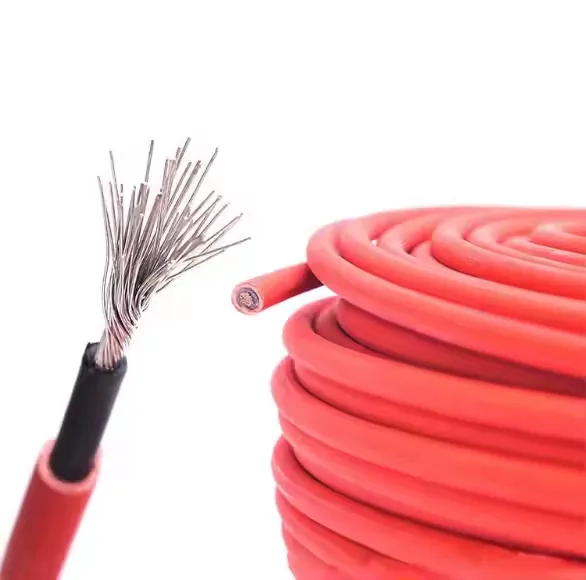

Solar photovoltaic (PV) cables are critical components in solar power systems, transmitting direct current (DC) from panels to inverters or other equipment in rooftop and ground-mounted installations. For export projects, where solar systems are deployed across international markets, compliance with rigorous standards is paramount to ensure safety, reliability, and market acceptance. TUV certification, issued by TÜV Rheinland, is a globally recognized mark of quality for solar cables, verifying adherence to standards like EN 50618 and IEC 62930. This guide explains why TUV-certified solar cables are essential for export projects, detailing their benefits, compliance requirements, and practical implications, presented in a formal and structured manner.

Table of Contents

1. Overview of TUV Certification for Solar Cables

TUV certification, provided by TÜV Rheinland, is a third-party verification that solar PV cables meet stringent performance, safety, and durability standards, such as EN 50618 (for 1.5 kV DC cables) and IEC 62930 (for 1.8/3 kV DC cables). These cables, typically single-core or twin-core with XLPE or EPR insulation, are designed for DC applications in solar systems, operating at voltages of 0.6/1 kV to 1.8/3 kV DC. TUV certification involves rigorous testing for UV resistance, temperature tolerance (-40°C to 90°C), insulation integrity, and flame-retardant properties, ensuring a lifespan of 25–30 years. For export projects, TUV certification facilitates compliance with international regulations and enhances market competitiveness.

AspectDetails
Certification BodyTÜV Rheinland
StandardsEN 50618, IEC 62930
Voltage Rating0.6/1 kV to 1.8/3 kV DC
Testing ScopeUV resistance, temperature, insulation

2. Why TUV Certification Is Essential for Export Projects

TUV-certified solar cables are critical for export projects due to their global recognition and alignment with international standards, ensuring the following benefits:

  • Compliance with International Regulations:
    • Description: Export markets, particularly in Europe, North America, and Asia, require compliance with standards like EN 50618, IEC 62930, or regional equivalents (e.g., UL 4703 for the USA).
    • Benefit: TUV certification verifies adherence to these standards, facilitating regulatory approval and avoiding delays or rejections in customs or project audits.
  • Enhanced Market Acceptance:
    • Description: TUV certification is a trusted mark recognized by project developers, installers, and regulators worldwide.
    • Benefit: Certified cables enhance credibility, increasing the likelihood of winning contracts in competitive markets like Germany, the USA, or Australia.
  • Assured Safety and Reliability:
    • Description: TUV testing ensures cables withstand environmental stressors (e.g., UV, moisture) and electrical demands (e.g., partial discharge <10 pC).
    • Benefit: Reduces risks of insulation breakdown, short circuits, or fire hazards, ensuring safe operation in diverse climates.
  • Long-Term Durability:
    • Description: TUV-certified cables undergo accelerated aging tests (e.g., 1000 hours at 120°C) to verify a 25–30-year lifespan.
    • Benefit: Minimizes maintenance costs and system downtime, critical for large-scale export projects.
  • Traceability and Quality Assurance:
    • Description: TUV certification includes factory audits and batch testing, ensuring consistent quality across production.
    • Benefit: Provides confidence to international buyers that cables meet specifications, reducing warranty claims or project disputes.
BenefitDetails
Regulatory ComplianceMeets EN 50618, IEC 62930
Market AcceptanceTrusted by global developers
Safety/ReliabilityWithstands UV, electrical stress
Durability25–30-year lifespan
Quality AssuranceFactory audits, batch testing

3. Key Features of TUV-Certified Solar Cables

TUV-certified solar cables are designed with specific features to meet the demands of export projects:

  • UV and Weather Resistance: XLPE or EPR insulation and XLPO sheathing ensure resistance to UV radiation, ozone, and temperatures from -40°C to 90°C, tested per EN 50618.
  • High Voltage Rating: Rated for 1.5 kV or 1.8/3 kV DC, suitable for modern PV systems with high open-circuit voltages (Voc up to 1500 V).
  • Flame-Retardant Properties: Comply with IEC 60332-1, minimizing fire risks in rooftop or commercial installations.
  • Low Voltage Drop: Tinned copper conductors (e.g., 4.61 Ω/km for 4 mm²) ensure voltage drop <1.5%, optimizing energy efficiency.
  • Mechanical Durability: Flexible, stranded conductors (Class 5 per IEC 60228) and robust sheathing withstand installation stress and vibrations.
FeatureDetails
UV/Weather ResistanceXLPE/XLPO, -40°C to 90°C
Voltage Rating1.5–1.8/3 kV DC
Flame-RetardantIEC 60332-1 compliance
Voltage Drop<1.5% with tinned copper
Mechanical DurabilityClass 5 conductors

4. Practical Considerations for Export Projects

When selecting TUV-certified solar cables for export projects, consider the following:

  • Market-Specific Requirements:
    • Verify compatibility with regional standards (e.g., UL 4703 for North America, CE marking for Europe) alongside TUV certification.
    • Example: Use cables with dual TUV/UL certification for US export markets.
  • Environmental Conditions:
    • Ensure cables are rated for local climates (e.g., high UV exposure in Australia, cold temperatures in Canada).
    • Example: XLPO-sheathed cables for desert environments with intense sunlight.
  • System Design:
    • Select single-core or twin-core cables based on system needs (e.g., single-core for long runs, twin-core for compact rooftop systems).
    • Example: 6 mm² single-core for 20 A over 30 m to maintain <1.5% voltage drop.
  • Installation Practices:
    • Use UV-resistant conduits, maintain bending radii (4–6 times cable diameter), and secure cables with UV-resistant ties to ensure durability.
    • Example: MC4 connectors (IP67) for sealed, reliable connections.
  • Cost vs. Quality:
    • Balance higher costs of TUV-certified cables with reduced risk of project delays or failures.
    • Example: Use aluminum conductors for cost savings in non-critical runs if permitted by standards.
ConsiderationDetails
Market RequirementsDual TUV/UL certification
Environmental ConditionsXLPO for UV, cold resistance
System DesignSingle/twin-core based on needs
InstallationConduits, MC4 connectors
Cost vs. QualityBalance cost with reliability

5. Challenges and Solutions

ChallengeSolution
Higher CostsUse TUV-certified cables for critical runs, non-certified for low-risk areas
Regulatory VariationsSelect cables with dual certifications (e.g., TUV/UL)
Counterfeit CertificationsVerify TUV certificates via TÜV Rheinland’s database
Installation ErrorsTrain installers, follow EN 50618 guidelines

6. Conclusion

TUV-certified solar cables are essential for export projects due to their compliance with international standards, enhanced market acceptance, assured safety, long-term durability, and quality assurance. These cables, designed with UV resistance, high voltage ratings, and flame-retardant properties, ensure reliable performance in diverse climates and applications. By addressing market-specific requirements, environmental conditions, and installation practices, TUV-certified cables minimize risks of project delays, regulatory issues, or system failures. For solar PV export projects, choosing TUV-certified cables supports a lifespan of 25–30 years, ensuring efficiency and competitiveness in global markets.

Source: JianYunCable.
