Top Factors to Consider When Choosing Solar PV Cable for Rooftop Systems

By JianYunCable -

 Solar photovoltaic (PV) cables are critical components in rooftop solar systems, connecting solar panels to inverters and other equipment to ensure efficient power transmission. Selecting the appropriate PV cable is essential for system reliability, safety, and longevity, typically designed for a lifespan of 25–30 years. These cables, often low-voltage (0.6/1 kV to 1.8/3 kV DC), must withstand harsh environmental conditions and comply with standards like EN 50618 or IEC 62930. This guide outlines the top factors to consider when choosing solar PV cables for rooftop systems, presented in a formal and structured manner.

Table of Contents

1. Overview of Solar PV Cables

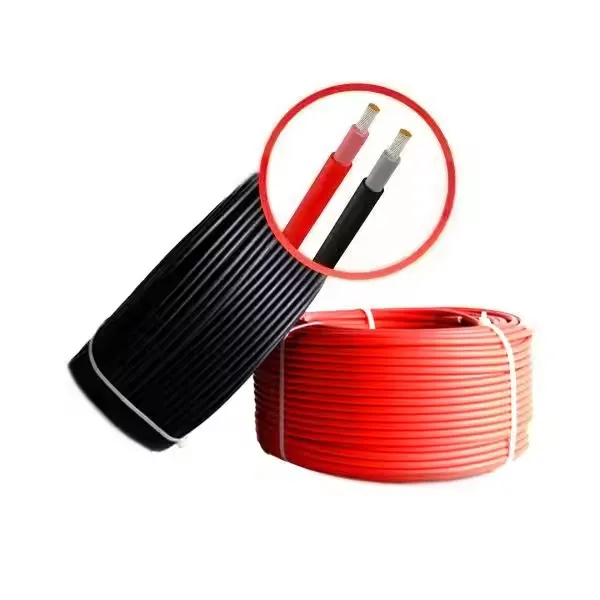

Solar PV cables are specialized cables designed for photovoltaic systems, primarily used to connect solar panels to inverters, combiner boxes, and grid connections. Unlike standard power cables, PV cables are engineered for DC applications, with enhanced insulation (e.g., XLPE) and sheathing to withstand UV radiation, temperature extremes, and mechanical stress. They are typically single-core, with copper or aluminum conductors, and rated for voltages up to 1.8/3 kV DC (EN 50618). Proper selection ensures efficient power transmission, minimal energy loss, and compliance with safety standards.

FeatureDetails
PurposeConnect solar panels to inverters
Voltage Rating0.6/1 kV to 1.8/3 kV DC
InsulationXLPE, EPR
StandardsEN 50618, IEC 62930

2. Top Factors for Cable Selection

Choosing the right solar PV cable for rooftop systems involves evaluating several key factors to ensure performance and durability:

  • UV and Weather Resistance:
    • Description: Rooftop cables are exposed to sunlight, rain, and temperature fluctuations, requiring robust sheathing to prevent degradation.
    • Considerations: Select cables with UV-resistant sheathing (e.g., cross-linked polyethylene, XLPO, or EPR) and weatherproof materials compliant with EN 50618. Ensure resistance to temperatures from -40°C to 90°C.
    • Example: PV1-F cables with XLPO sheathing for UV and ozone resistance.
  • Current-Carrying Capacity:
    • Description: Cables must handle the DC current generated by solar panels without excessive voltage drop or overheating.
    • Considerations: Choose conductor size based on panel output and cable length (e.g., 4 mm² copper for 10–15 A over 20 m, voltage drop <1.5% per EN 50618). Copper (conductivity 5.96 × 10⁷ S/m) is preferred for lower resistance (e.g., 4.61 Îİ/km for 4 mm²) compared to aluminum (7.38 Îİ/km).
    • Example: 6 mm² copper cable for 20 A over 30 m (VD ≈ 1.2%).
  • Voltage Rating:
    • Description: PV cables must support the system’s open-circuit voltage (Voc), typically up to 1000 V or 1500 V DC in rooftop systems.
    • Considerations: Select cables rated for 1.8/3 kV DC to accommodate voltage spikes and ensure insulation withstands partial discharges (e.g., <10 pC per IEC 62930).
    • Example: 1.5 kV DC-rated cables for systems with Voc up to 1000 V.
  • Mechanical Durability:
    • Description: Cables must resist mechanical stress from installation, wind, or rooftop vibrations.
    • Considerations: Choose cables with flexible, stranded conductors (Class 5 per IEC 60228) and robust sheathing. Ensure minimum bending radius (e.g., 4–6 times cable diameter) is maintained.
    • Example: Tinned copper conductors for flexibility and corrosion resistance.
  • Fire and Safety Performance:
    • Description: Rooftop cables must minimize fire risks in residential or commercial settings.
    • Considerations: Use low-smoke zero-halogen (LSZH) cables for indoor or confined areas to reduce smoke and toxic emissions. Ensure compliance with flame-retardant standards (e.g., IEC 60332-1).
    • Example: LSZH PV cables for rooftop installations near occupied spaces.
FactorDetailsExample
UV/Weather ResistanceXLPO sheathing, -40°C to 90°CPV1-F cable
Current CapacitySize for <1.5% VD6 mm² for 20 A
Voltage Rating1.8/3 kV DC1.5 kV DC cable
Mechanical DurabilityStranded conductorsTinned copper
Fire SafetyLSZH, flame-retardantLSZH PV cable

3. Standards and Compliance

Compliance with international and regional standards ensures safety and reliability:

  • EN 50618: Specifies requirements for PV cables, including UV resistance, temperature rating (90°C), and DC voltage (1.5 kV).
  • IEC 62930: Covers PV cables for 1.8/3 kV DC systems, with tests for insulation and partial discharge.
  • IEC 60332-1: Ensures flame-retardant properties for fire safety.
  • IEC 60228: Defines conductor classes (e.g., Class 5 for flexibility).
  • Regional Standards: Comply with UL 4703 (North America), CCC (China), or CE (Europe) for project-specific requirements.
StandardDetails
EN 50618UV resistance, 1.5 kV DC
IEC 629301.8/3 kV DC, PD testing
IEC 60332-1Flame-retardant properties
IEC 60228Conductor classes

4. Installation and Maintenance Considerations

Proper installation and maintenance enhance cable performance and longevity:

  • Installation Practices:
    • Route cables in UV-resistant conduits or trays to protect from direct sunlight.
    • Maintain minimum bending radii (4–6D) to avoid insulation stress.
    • Use weatherproof connectors (e.g., MC4) to ensure secure, sealed connections.
    • Secure cables with UV-resistant cable ties to prevent movement from wind or vibrations.
  • Maintenance Practices:
    • Conduct periodic visual inspections for signs of UV degradation, cracking, or loose connections.
    • Perform insulation resistance tests (e.g., >1000 MÎİ/km at 20°C) to detect degradation.
    • Monitor system performance for voltage drop or power loss, indicating potential cable issues.
PracticeDetails
InstallationConduits, bending radii, MC4 connectors
MaintenanceVisual inspections, resistance tests

5. Challenges and Solutions

ChallengeSolution
UV DegradationUse XLPO or EPR sheathing, UV-resistant conduits
OverheatingSize conductors for load, apply derating (e.g., 0.91 at 40°C)
Cost ConstraintsBalance copper vs. aluminum, use LSZH only where required
Installation ErrorsTrain installers, follow bending and routing guidelines

6. Conclusion

Selecting the right solar PV cable for rooftop systems requires careful consideration of UV and weather resistance, current-carrying capacity, voltage rating, mechanical durability, and fire safety. By choosing cables compliant with standards like EN 50618 and IEC 62930, using proper installation techniques (e.g., UV-resistant conduits, secure connectors), and implementing regular maintenance (e.g., insulation tests), users can ensure efficient power transmission and system reliability. Addressing challenges like UV degradation and overheating through strategic cable selection and installation practices supports a solar PV system lifespan of 25–30 years, optimizing performance for residential and commercial rooftop applications.

Source: JianYunCable.
