Single-Core vs. Twin-Core Solar Cables: What's the Difference?

By JianYunCable -

 Solar photovoltaic (PV) cables are essential for transmitting direct current (DC) from solar panels to inverters, combiner boxes, or battery storage systems in solar power installations. Two common configurations—single-core and twin-core solar cables—are used based on system requirements, installation constraints, and performance needs. Understanding their differences is crucial for ensuring efficiency, safety, and compliance with standards like EN 50618 and IEC 62930 in rooftop and ground-mounted solar systems. This guide compares single-core and twin-core solar cables, detailing their characteristics, applications, and selection criteria, presented in a formal and structured manner.

Table of Contents

1. Overview of Single-Core and Twin-Core Solar Cables

Solar PV cables are designed for DC applications, typically rated for 0.6/1 kV to 1.8/3 kV DC, with insulation materials like cross-linked polyethylene (XLPE) or ethylene propylene rubber (EPR) to withstand UV radiation, temperature extremes (-40°C to 90°C), and mechanical stress. Single-core cables consist of one insulated conductor, while twin-core cables combine positive and negative conductors within a single outer sheath. Both types use tinned copper or aluminum conductors and comply with standards like EN 50618 for UV resistance and durability, ensuring a lifespan of 25–30 years.

Cable TypeStructureVoltage RatingStandards
Single-CoreOne insulated conductor0.6/1 kV to 1.8/3 kV DCEN 50618, IEC 62930
Twin-CorePositive/negative in one sheath0.6/1 kV to 1.8/3 kV DCEN 50618, IEC 62930

2. Key Differences Between Single-Core and Twin-Core Cables

The differences between single-core and twin-core solar cables lie in their construction, installation, electrical performance, and cost:

  • Construction:

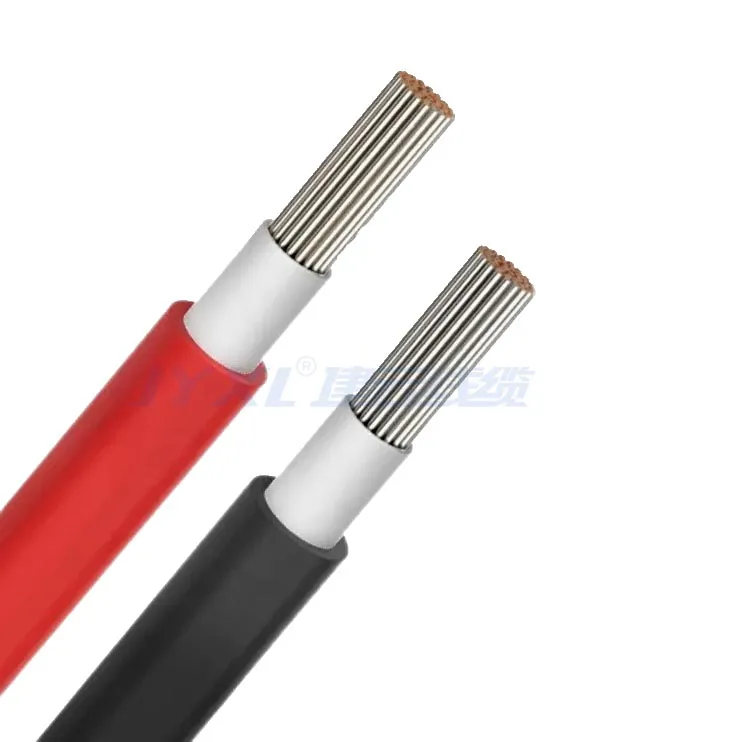

    • Single-Core: One conductor (e.g., 4 mm² tinned copper) with insulation (e.g., XLPE) and an outer sheath. Separate cables are used for positive and negative connections.
    • Twin-Core: Two conductors (positive and negative) within a single outer sheath, typically color-coded (e.g., red/black) for polarity identification.
  • Installation Flexibility:
    • Single-Core: Offers greater flexibility in routing, as positive and negative cables can be run independently, ideal for complex layouts or long distances.
    • Twin-Core: Simplifies installation by combining both conductors in one cable, reducing labor and space but limiting routing options in tight spaces.
  • Electromagnetic Interference (EMI):
    • Single-Core: Susceptible to EMI if positive and negative cables are not closely paired, requiring careful routing (e.g., 150–300 mm separation from AC cables).
    • Twin-Core: Reduces EMI due to close proximity of positive and negative conductors, which cancels out magnetic fields, ideal for sensitive systems.
  • Cost:
    • Single-Core: Lower material cost per cable but requires two cables per circuit, potentially increasing overall cost.
    • Twin-Core: Higher material cost per cable but reduces installation labor and accessory costs (e.g., fewer conduits or clips).
  • Current-Carrying Capacity:
    • Single-Core: Higher capacity for larger cross-sections (e.g., 6 mm² carries ~20 A at 90°C), suitable for high-power systems.
    • Twin-Core: Limited to smaller cross-sections (e.g., 4 mm²) due to dual conductors, suitable for lower-current applications (e.g., <15 A).
FeatureSingle-CoreTwin-Core
ConstructionOne conductorPositive/negative in one sheath
InstallationFlexible routingSimpler, less flexible
EMISusceptible, needs careful routingReduced due to conductor proximity
CostLower per cable, higher overallHigher per cable, lower labor
Current CapacityHigher for large sizesLimited by dual conductors

3. Applications and Suitability

The choice between single-core and twin-core cables depends on the solar PV system’s design and requirements:

  • Single-Core Cables:
    • Applications: Large-scale solar farms, long-distance runs (e.g., >30 m), or systems with complex layouts requiring flexible routing.
    • Suitability: Ideal for high-power systems (e.g., >20 A) or where separate positive/negative routing is needed to avoid obstacles.
    • Example: 6 mm² single-core cables for 1000 V DC string inverters in ground-mounted systems.
  • Twin-Core Cables:
    • Applications: Residential or small commercial rooftop systems, short cable runs (<20 m), or installations with limited space.
    • Suitability: Preferred for simpler installations with lower current demands (e.g., <15 A) and where EMI reduction is critical.
    • Example: 4 mm² twin-core cables for 600 V DC rooftop systems with microinverters.
Cable TypeApplicationsSuitability
Single-CoreSolar farms, long runsHigh-power, flexible routing
Twin-CoreRooftop, short runsLow current, EMI reduction

4. Practical Considerations for Selection

When choosing between single-core and twin-core solar cables, consider the following:

  • System Design:
    • Use single-core for high-current or long-distance systems to minimize voltage drop (e.g., <1.5% per EN 50618).
    • Opt for twin-core in compact systems to reduce installation complexity and EMI.
  • Installation Environment:
    • Single-core cables require separate conduits or trays for positive and negative runs, increasing space needs.
    • Twin-core cables are easier to route in confined rooftop spaces but may require larger conduits due to dual conductors.
  • Cost vs. Performance:
    • Balance material costs (single-core cheaper per cable) with labor savings (twin-core reduces installation time).
    • Consider copper (lower resistance, 4.61 Îİ/km for 4 mm²) vs. aluminum (7.38 Îİ/km) for both types based on budget.
  • EMI Mitigation:
    • For single-core, maintain close proximity of positive/negative cables or use shielded cables to reduce EMI.
    • Twin-core inherently reduces EMI, ideal for systems near sensitive electronics.
  • Connector Compatibility:
    • Ensure compatibility with standard PV connectors (e.g., MC4, IP67-rated) for both cable types.
ConsiderationSingle-CoreTwin-Core
System DesignHigh-current, long runsCompact, low current
EnvironmentSeparate conduitsConfined spaces
CostCheaper per cableLower labor cost
EMINeeds careful routingInherent EMI reduction

5. Standards and Compliance

Both single-core and twin-core cables must comply with standards to ensure safety and performance:

  • EN 50618: Specifies requirements for PV cables, including UV resistance, 90°C operating temperature, and 1.5 kV DC rating.
  • IEC 62930: Covers PV cables for up to 1.8/3 kV DC, with tests for insulation and partial discharge (<10 pC).
  • IEC 60332-1: Ensures flame-retardant properties for fire safety.
  • IEC 60228: Defines conductor classes (e.g., Class 5 for flexibility).
  • Regional Standards: Comply with UL 4703 (North America), CCC (China), or CE (Europe) for project-specific requirements.
StandardDetails
EN 50618UV resistance, 1.5 kV DC
IEC 629301.8/3 kV DC, PD testing
IEC 60332-1Flame-retardant properties
IEC 60228Conductor classes

6. Challenges and Solutions

ChallengeSingle-Core SolutionTwin-Core Solution
EMI InterferenceClose routing, shielded cablesInherent EMI reduction
Installation ComplexityUse conduits, plan routesSingle cable simplifies routing
Cost ManagementUse aluminum for lower costReduce labor with single cable
Space ConstraintsFlexible routingLarger conduit needed

7. Conclusion

Single-core and twin-core solar cables serve distinct roles in solar PV systems, with single-core offering flexibility for high-power, complex layouts and twin-core simplifying installation and reducing EMI in compact, low-current systems. Key differences lie in construction, installation ease, EMI performance, cost, and current capacity. By evaluating system design, environmental conditions, and standards like EN 50618, users can select the appropriate cable type to ensure efficient power transmission, safety, and a lifespan of 25–30 years. Proper routing, connector use, and maintenance further enhance performance in rooftop and ground-mounted solar installations.

Source: JianYunCable.
