PVC vs. XLPE Medium Voltage Power Cable: Technical Comparison

By JianYunCable -

 T

Table of Contents

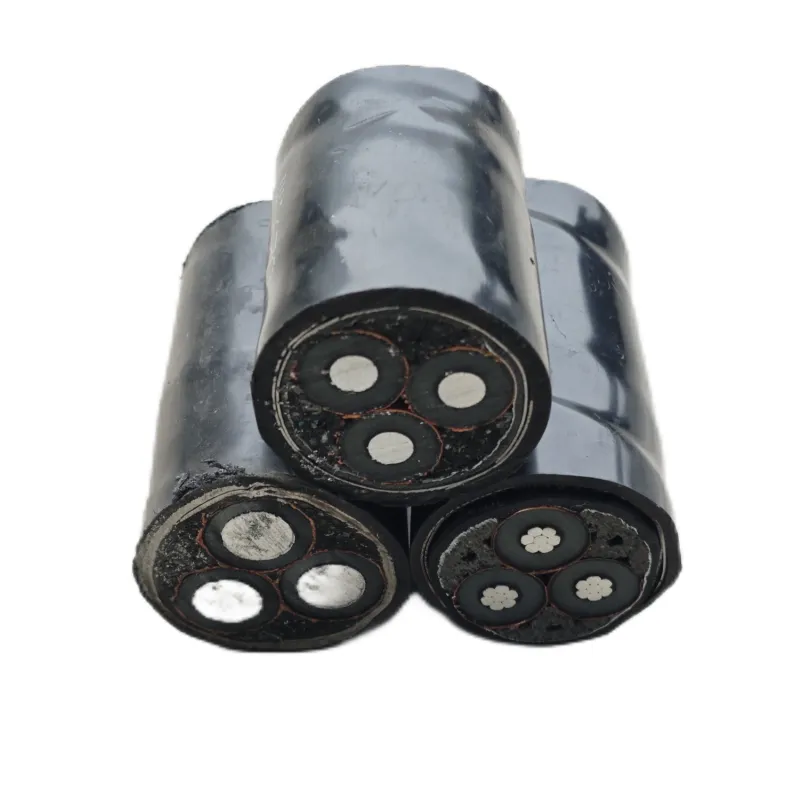

1. Overview of PVC and XLPE MV Cables

Medium voltage power cables (6–35 kV) are designed for efficient power transmission in applications requiring higher capacity than low voltage systems. The insulation material is a key factor in determining performance, durability, and safety. PVC (polyvinyl chloride) and XLPE (cross-linked polyethylene) are two common insulation materials for MV cables. PVC is cost-effective and widely used, while XLPE offers superior electrical and thermal properties. Both are paired with conductors (copper or aluminum), shielding, and armoring for MV applications. Henan Province Jianyun Cable Co., Ltd. provides TUV- and CCC-certified PVC and XLPE MV cables, ensuring reliability for diverse projects.

2. Technical Comparison of PVC and XLPE MV Cables

The differences between PVC and XLPE insulation in MV cables influence their performance and suitability:

FeaturePVC MV CablesXLPE MV Cables
Thermal ResistanceLower; max operating temperature 70°C.Higher; max operating temperature 90°C.
Dielectric StrengthModerate; ~15–20 kV/mm.High; ≥20 kV/mm, better resistance to electrical stress.
Current CapacityLower; e.g., 180 A for 50 mm² copper at 11 kV.Higher; e.g., 200 A for 50 mm² copper at 11 kV due to better thermal performance.
Moisture ResistanceModerate; requires additional sealing in wet environments.Excellent; inherently resistant to moisture ingress.
FlexibilityMore flexible; suitable for tight spaces.Less flexible; requires larger bending radius (6–10D).
CostLower; e.g., $10–40/m for 11 kV, 50 mm².Higher; e.g., $15–50/m for 11 kV, 50 mm².
DurabilityModerate; susceptible to aging and UV degradation.High; resistant to aging, UV, and chemical degradation.
Environmental ImpactHigher; emits toxic fumes when burned unless LSZH-modified.Lower; can be paired with LSZH sheathing for low smoke/toxicity.
Example ProductJianyun Cable’s 11 kV PVC-insulated, SWA-armored cable.Jianyun Cable’s 11 kV XLPE-insulated, SWA-armored cable.

3. Applications of PVC and XLPE MV Cables

3.1. PVC MV Cables

  • Indoor Industrial Applications: Powering machinery in controlled environments (e.g., manufacturing plants).
  • Urban Infrastructure: Used in subways or commercial buildings where flexibility is needed.
  • Cost-Sensitive Projects: Budget-constrained installations with moderate environmental demands.
  • Example: Jianyun Cable’s 6 kV PVC-insulated cable for indoor factory distribution.

3.2. XLPE MV Cables

  • Outdoor and Harsh Environments: Powering mining operations, oil and gas facilities, or renewable energy systems.
  • High-Power Applications: Substations and heavy industrial plants requiring high current capacity.
  • Public Safety Areas: Airports or data centers with LSZH sheathing for fire safety.
  • Example: Jianyun Cable’s 33 kV XLPE-insulated cable for solar farm grid integration.

4. Technical Specifications and Standards

Both PVC and XLPE MV cables must meet rigorous standards for safety and performance:

  • Conductor:
    • Copper or aluminum, Class 2 stranded (IEC 60228); resistance <0.017 Ω/km for 50 mm² copper, <0.028 Ω/km for aluminum.
  • Insulation:
    • PVC: 70°C max, 2.5–8 mm thickness (e.g., 3.4 mm for 11 kV per IEC 60502-2).
    • XLPE: 90°C max, 2.5–8 mm thickness, ≥20 kV/mm dielectric strength, <10 pC partial discharge.
  • Shielding:
    • Copper tape or wire for electric field management and grounding.
  • Sheathing and Armoring:
    • PVC, PE, LSZH, or PUR sheath; steel wire armor (SWA) or steel tape for mechanical protection.
  • Voltage Rating:
    • 6–35 kV (e.g., 6/10 kV, 12/20 kV, 18/30 kV).
  • Standards:
    • IEC 60502-2: MV power cables (6–30 kV).
    • IEC 60038: Voltage classification.
    • IEC 60332-3: Flame-retardant properties.
    • IEC 60754-1/IEC 61034: LSZH requirements for low smoke and toxicity.
    • RoHS/REACH: Restrictions on hazardous substances.
  • Certifications: Jianyun Cable provides TUV, CCC, and ISO 9001-certified PVC and XLPE MV cables.
SpecificationPVC MV CablesXLPE MV Cables
ConductorCopper/aluminum, Class 2, <0.017 Ω/km (copper).Copper/aluminum, Class 2, <0.017 Ω/km (copper).
InsulationPVC, 70°C, 2.5–8 mm, ~15–20 kV/mm.XLPE, 90°C, 2.5–8 mm, ≥20 kV/mm.
ShieldingCopper tape/wire, <10 pC partial discharge.Copper tape/wire, <10 pC partial discharge.
SheathingPVC, PE, LSZH, or PUR; SWA or tape armoring.PVC, PE, LSZH, or PUR; SWA or tape armoring.
Voltage Rating6–35 kV.6–35 kV.
StandardsIEC 60502-2, IEC 60038, IEC 60332-3.IEC 60502-2, IEC 60038, IEC 60332-3.

5. Selection Criteria for PVC vs. XLPE MV Cables

Choosing between PVC and XLPE MV cables depends on project-specific factors:

  • Electrical Requirements:
    • PVC: Suitable for moderate loads (e.g., 180 A at 11 kV); limited by thermal capacity.
    • XLPE: Preferred for high-current applications (e.g., 200 A at 11 kV) due to higher thermal and electrical performance.
  • Environmental Conditions:
    • PVC: Best for indoor, dry environments; requires UV protection or LSZH sheathing for safety.
    • XLPE: Ideal for outdoor, wet, or harsh environments (e.g., mining, solar farms) due to moisture and UV resistance.
  • Installation Needs:
    • PVC: More flexible, easier for tight spaces with 4–8D bending radius.
    • XLPE: Less flexible, requires 6–10D bending radius; suitable for fixed installations.
  • Budget Constraints:
    • PVC: Cost-effective for budget-constrained projects with moderate performance needs.
    • XLPE: Higher initial cost but lower lifecycle cost due to durability and efficiency.
  • Safety and Compliance:
    • PVC: Use LSZH-modified PVC for public areas (e.g., airports) per IEC 60754-1.
    • XLPE: Preferred with LSZH sheathing for fire safety and low toxicity.
    • Verify TUV, UL, or CCC certifications via official databases (e.g., TUV Certipedia).
  • Supplier Reliability:
    • Partner with manufacturers like Jianyun Cable, offering TUV-certified PVC and XLPE MV cables (e.g., showcased at Elektro 2025 in Moscow).
    • Request batch-specific test reports (e.g., insulation resistance >1000 MΩ/km) and factory audits (e.g., SGS).

6. Challenges and Solutions

ChallengeSolution
PVC Thermal LimitationsUse XLPE for high-current or high-temperature applications; apply derating (e.g., 0.91 at 40°C per IEC 60364).
PVC Environmental DegradationUse XLPE or LSZH-modified PVC for outdoor or harsh environments; add UV-resistant sheathing.
XLPE Higher CostUse PVC for budget-constrained, indoor projects with moderate electrical demands.
Counterfeit ProductsSource from Jianyun Cable with TUV/CCC certifications; verify via official databases.
Installation ComplexityUse PVC for flexible routing; ensure proper jointing and termination for XLPE (e.g., heat-shrink kits).

7. Conclusion

PVC and XLPE medium voltage power cables (6–35 kV) serve distinct roles in power distribution, with PVC offering cost-effectiveness and flexibility for indoor, moderate-load applications, and XLPE providing superior thermal, electrical, and environmental performance for demanding outdoor or high-power projects. Both comply with standards like IEC 60502-2 and IEC 60038, ensuring safety and reliability. Henan Province Jianyun Cable Co., Ltd. offers TUV- and CCC-certified PVC and XLPE MV cables, tailored for industrial, utility, and infrastructure applications. By evaluating electrical, environmental, and budgetary factors, and partnering with trusted suppliers, users can select the optimal insulation material for safe, efficient, and durable power distribution systems lasting 20–30 years.

Source: JianYunCable.
