Medium Voltage Power Cable Installation Guide: Best Practices for Safety

By JianYunCable -

Table of Contents

1. Overview of MV Cable Installation

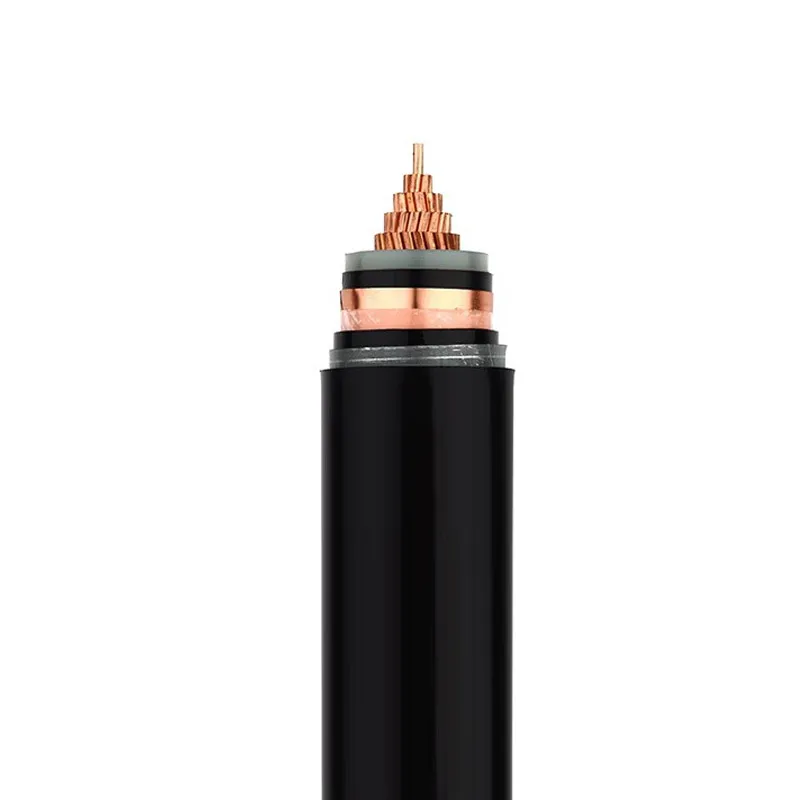

Installing medium voltage power cables requires careful planning, adherence to standards, and strict safety measures due to their high voltage ratings (6–35 kV). MV cables, typically featuring XLPE or EPR insulation, copper or aluminum conductors, and steel wire armoring (SWA), are used in applications like industrial plants, utility grids, and renewable energy systems. Proper installation ensures operational efficiency, minimizes electrical faults, and extends cable lifespan (20–30 years). Henan Province Jianyun Cable Co., Ltd. provides TUV- and CCC-certified MV cables, designed for safe and reliable installation in diverse environments.

2. Pre-Installation Preparation

Effective preparation is critical to safe and successful MV cable installation:

  • Site Assessment:
    • Evaluate environmental conditions (e.g., temperature, moisture, chemical exposure).
    • Identify installation type: underground, overhead, or ducted.
    • Assess soil conditions for underground installations (e.g., thermal resistivity <1.2 K·m/W).
  • Cable Selection:
    • Choose appropriate voltage rating (e.g., 12/20 kV) per IEC 60038.
    • Select insulation (XLPE for high thermal resistance, LSZH for fire safety).
    • Verify conductor size (e.g., 50 mm² for 200 A) using IEC 60364 sizing charts.
    • Example: Jianyun Cable’s 11 kV XLPE-insulated, SWA-armored cable for industrial use.
  • Compliance Check:
    • Ensure cables meet IEC 60502-2 (e.g., insulation thickness 3.4 mm for 6/10 kV).
    • Verify TUV, CCC, or UL certifications via official databases (e.g., TUV Certipedia).
  • Equipment and Tools:
    • Use insulated tools, cable rollers, and pulling equipment rated for MV applications.
    • Prepare termination kits (e.g., heat-shrink or cold-shrink) and jointing materials.
  • Personnel Training:
    • Ensure technicians are trained in MV cable handling and safety per OSHA or IEC guidelines.

3. Installation Best Practices

Adhering to best practices during installation minimizes risks and ensures performance:

  • Cable Handling:
    • Avoid excessive bending; maintain minimum bending radius (6–10D, e.g., 300–500 mm for 50 mm diameter cable).
    • Use cable rollers to prevent insulation damage during pulling.
    • Protect cables from abrasion, sharp edges, or excessive tension (<5 kN for 50 mm² cable).
  • Underground Installation:
    • Dig trenches to a depth of 0.8–1.2 m, with 100 mm sand bedding for thermal conductivity.
    • Maintain cable spacing (e.g., 150 mm) to prevent overheating.
    • Use SWA-armored cables (e.g., Jianyun Cable’s 12/20 kV SWA-armored cable) for mechanical protection.
    • Install warning tapes or tiles above cables per local regulations.
  • Overhead Installation:
    • Use insulated supports and ensure proper sag (e.g., 1–2% of span length).
    • Protect against UV exposure with PE or XLPE sheathing.
  • Ducted Installation:
    • Use smooth, non-metallic ducts to prevent insulation damage.
    • Ensure ducts are clean and free of debris before pulling cables.
  • Jointing and Termination:
    • Use heat-shrink or cold-shrink kits for reliable insulation and sealing.
    • Ensure proper stripping and cleaning of insulation screens to prevent partial discharge.
    • Follow manufacturer guidelines (e.g., Jianyun Cable’s termination instructions) for compatibility.

4. Safety Protocols

Safety is paramount during MV cable installation due to high voltage risks:

  • Personal Protective Equipment (PPE):
    • Wear insulated gloves, arc-flash suits, and safety helmets compliant with IEC 60903.
  • De-Energization:
    • Ensure systems are de-energized and locked out/tagged out before work begins.
    • Test for residual voltage using a high-voltage tester.
  • Grounding:
    • Ground all metallic shields and armoring to prevent electrical faults.
    • Use grounding rods compliant with IEC 61230.
  • Fire Safety:
    • Use LSZH-sheathed cables (e.g., Jianyun Cable’s 8.7/15 kV LSZH cable) in confined spaces per IEC 60754-1.
    • Keep fire extinguishers rated for electrical fires on-site.
  • Environmental Protection:
    • Use PUR or PE sheathing in chemically harsh environments (e.g., oil and gas facilities).
    • Protect cables from moisture ingress with proper sealing during jointing.
Safety AspectBest Practice
PPEWear insulated gloves, arc-flash suits, helmets per IEC 60903.
De-EnergizationDe-energize systems, lock out/tag out, test for residual voltage.
GroundingGround shields and armoring per IEC 61230.
Fire SafetyUse LSZH cables in confined spaces; keep electrical fire extinguishers.
Environmental ProtectionUse PUR/PE sheathing; ensure proper sealing during jointing.

5. Post-Installation Testing

Post-installation testing ensures MV cables perform reliably:

  • Insulation Resistance Test:
    • Measure >1000 MÎİ/km at 20°C using a 5 kV megger.
  • Partial Discharge Test:
    • Ensure <10 pC at 1.73 × U₀ (e.g., 10.4 kV for 6/10 kV) per IEC 60502-2.
  • Voltage Test:
    • Apply 3.5 × U₀ (e.g., 21 kV for 6/10 kV) for 5 minutes to verify dielectric strength.
  • Continuity Test:
    • Verify conductor and shield continuity to ensure proper connections.
  • Sheath Integrity Test:
    • Test outer sheath for defects using a 5 kV DC test.
TestRequirementPurpose
Insulation Resistance>1000 MÎİ/km at 20°CVerify insulation quality.
Partial Discharge<10 pC at 1.73 × U₀Ensure insulation integrity.
Voltage Test3.5 × U₀ for 5 minutesConfirm dielectric strength.
Continuity TestVerify conductor/shield continuityEnsure proper connections.
Sheath Integrity5 kV DC testDetect sheath defects.

6. Challenges and Solutions

ChallengeSolution
Improper BendingMaintain 6–10D bending radius; use cable rollers to prevent damage.
Electrical FaultsGround shields properly; perform partial discharge and voltage tests.
Counterfeit ProductsSource from Jianyun Cable with TUV/CCC certifications; verify via official databases.
Environmental DamageUse PUR/LSZH sheathing; seal joints to prevent moisture ingress.
Installation ErrorsTrain personnel per IEC/OSHA guidelines; follow manufacturer termination instructions.

7. Conclusion

Proper installation of medium voltage power cables (6–35 kV) is critical for safety, reliability, and longevity in industrial, utility, and infrastructure projects. Best practices include thorough pre-installation preparation, careful handling, adherence to safety protocols, and rigorous post-installation testing. Compliance with standards like IEC 60502-2 ensures performance, while using certified products from manufacturers like Henan Province Jianyun Cable Co., Ltd. guarantees quality. By following these guidelines, projects can achieve safe, efficient, and durable power distribution systems lasting 20–30 years.

Source: JianYunCable.
